Fume & dust extraction
Compare local welding-fume extractors, central collectors and grinding-dust equipment. Define the contaminant, hood locations, duct network and simultaneous stations, then select the operating flow and maintenance arrangement.
4product & series pages12equipment categories3website languages
4 products in this view
Fume & dust extraction
Compare local welding-fume extractors, central collectors and grinding-dust equipment. Define the contaminant, hood locations, duct network and simultaneous stations, then select the operating flow and maintenance arrangement.

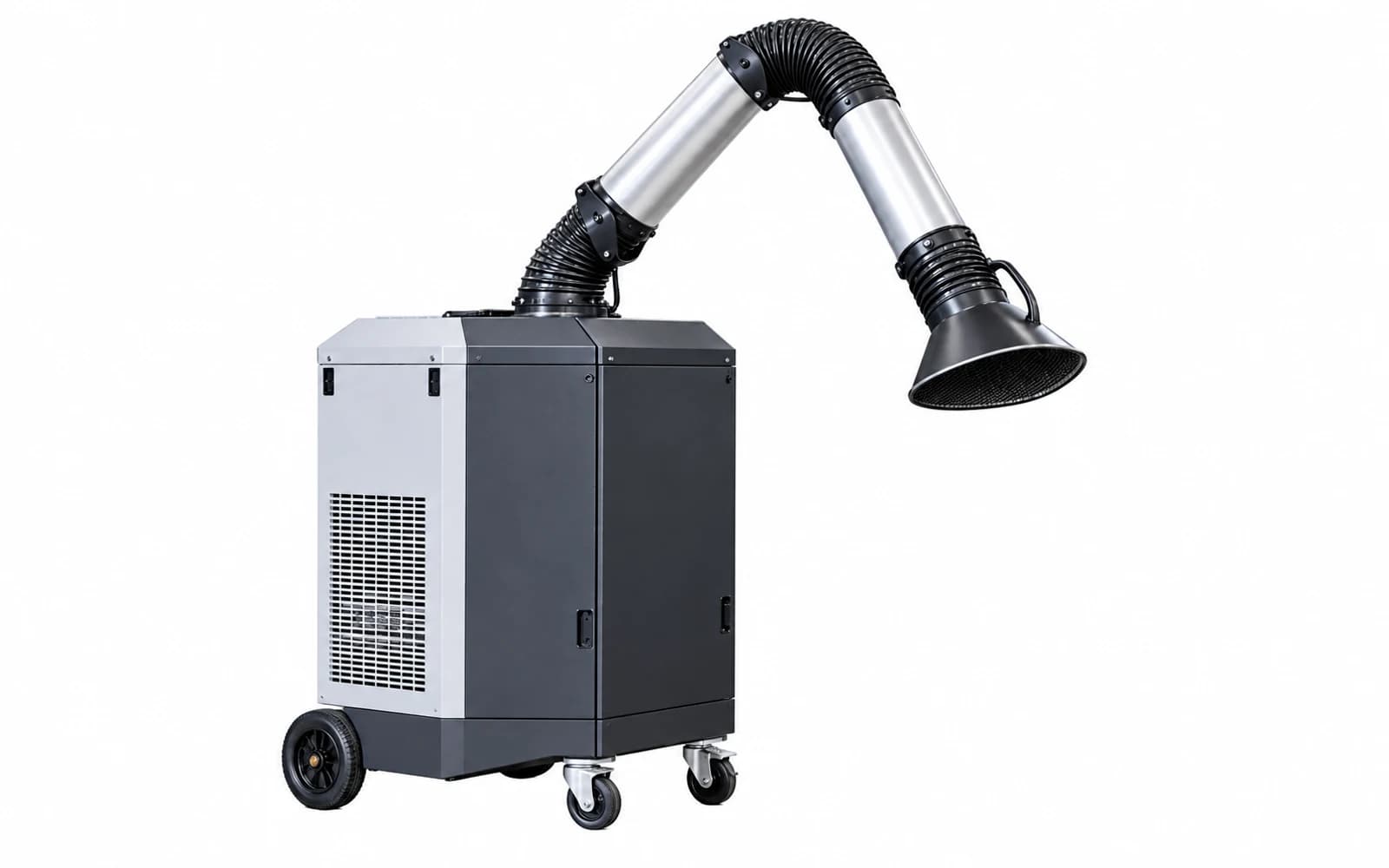

Fume & dust extractionJYJY-1500 Welding Fume ExtractorsJY-1500 welding fume extractors provide wall-mounted JY-1500G and mobile JY-1500S arrangements for local capture near a welding bench. Both listed versions use a 1.5 kW motor and 220 V supply; mounting and hood position distinguish the selection.
- Model options
- 2
- Compare by
- Capture layout and utilities

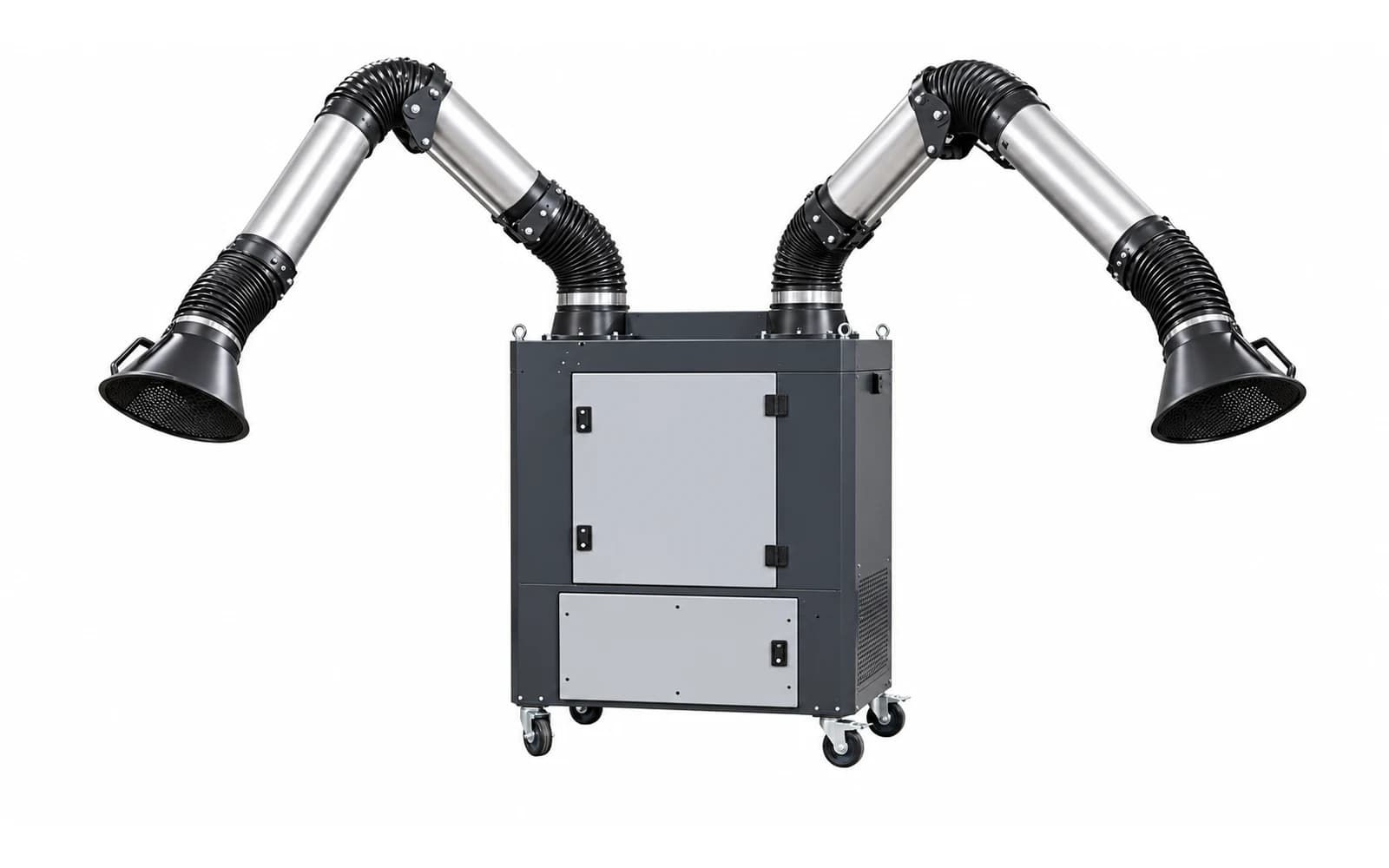

Fume & dust extractionJYJY-3600 Welding Fume ExtractorsJY-3600 and JY-3600S welding fume extractors offer single- and dual-arm capture arrangements. Their listed equipment basis is 2.2 kW and 380 V/50 Hz, with selection driven by hood locations and whether branches operate together.
- Model options
- 2
- Compare by
- Capture layout and utilities
Fume & dust extractionJYJY-XF Central Fume CollectorsJY-XF central welding fume collectors cover five listed configurations, from XF04 at 4000 m³/h and 5.5 kW to XF16 at 16000 m³/h and 18.5 kW. Compare these equipment ratings with the duct network and simultaneous capture points.
- Model options
- 5
- Compare by
- Capture layout and utilities

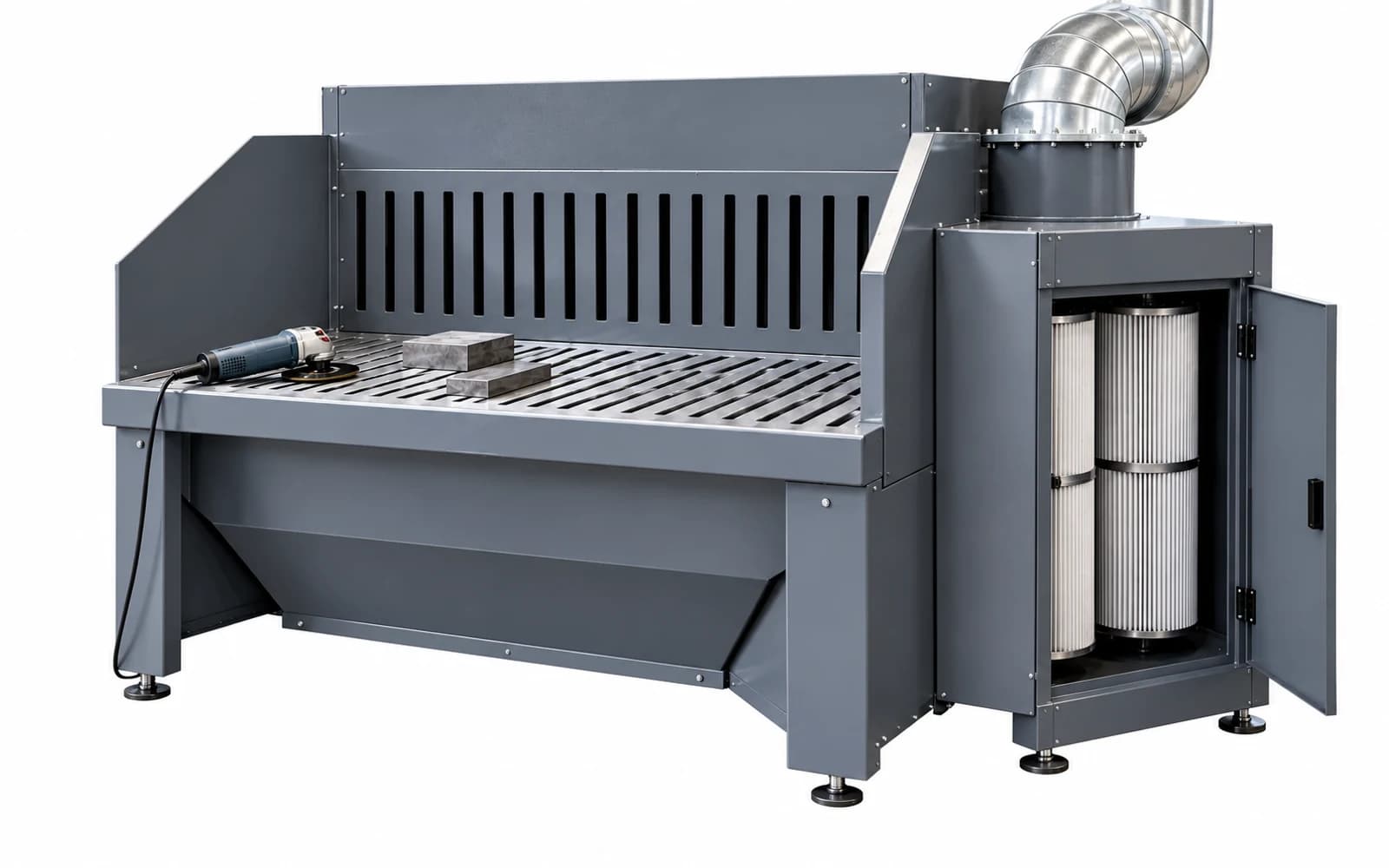

Fume & dust extractionJYJY-2400 Grinding Dust ExtractionJY-2400 is a grinding-dust extraction unit with a listed 2.2 kW motor, 380 V/50 Hz supply and 0.5–0.6 MPa compressed-air requirement. Selection starts with the dust-producing process, workpiece material and capture arrangement.
- Motor power
- 2.2kW
- Power supply
- 380V/50HZ
- Compressed air
- 0.5-0.6Mpa
