PRODUCT CATALOG
Articulated robots
Compare six-axis handling robots by payload, reach, controller and working environment. Select the exact model with its gripper load and pick-and-place positions for machine tending, assembly or part transfer.
5product & series pages12equipment categories3website languages
5 products in this view
Articulated robots
Compare six-axis handling robots by payload, reach, controller and working environment. Select the exact model with its gripper load and pick-and-place positions for machine tending, assembly or part transfer.

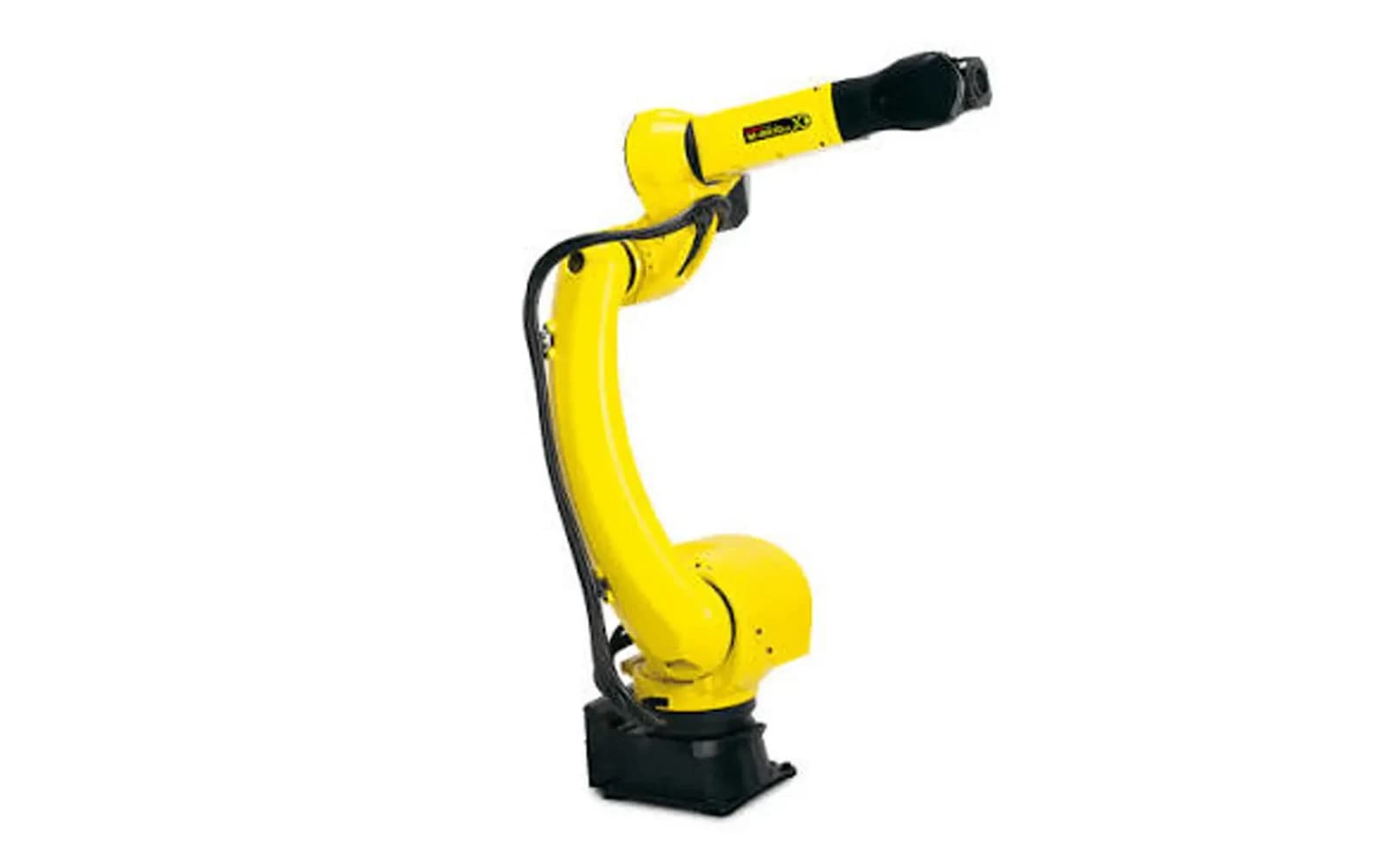

Articulated robotsFANUCFANUC M-20iD/25FANUC M-20iD/25 is a six-axis industrial robot with a 25 kg payload and 1831 mm reach for machine loading, parts handling and assembly. Its load capacity must accommodate the gripper and adapters as well as the part.
- Maximum payload
- 25 kg
- Maximum reach
- 1831 mm
- Controlled axes
- 6

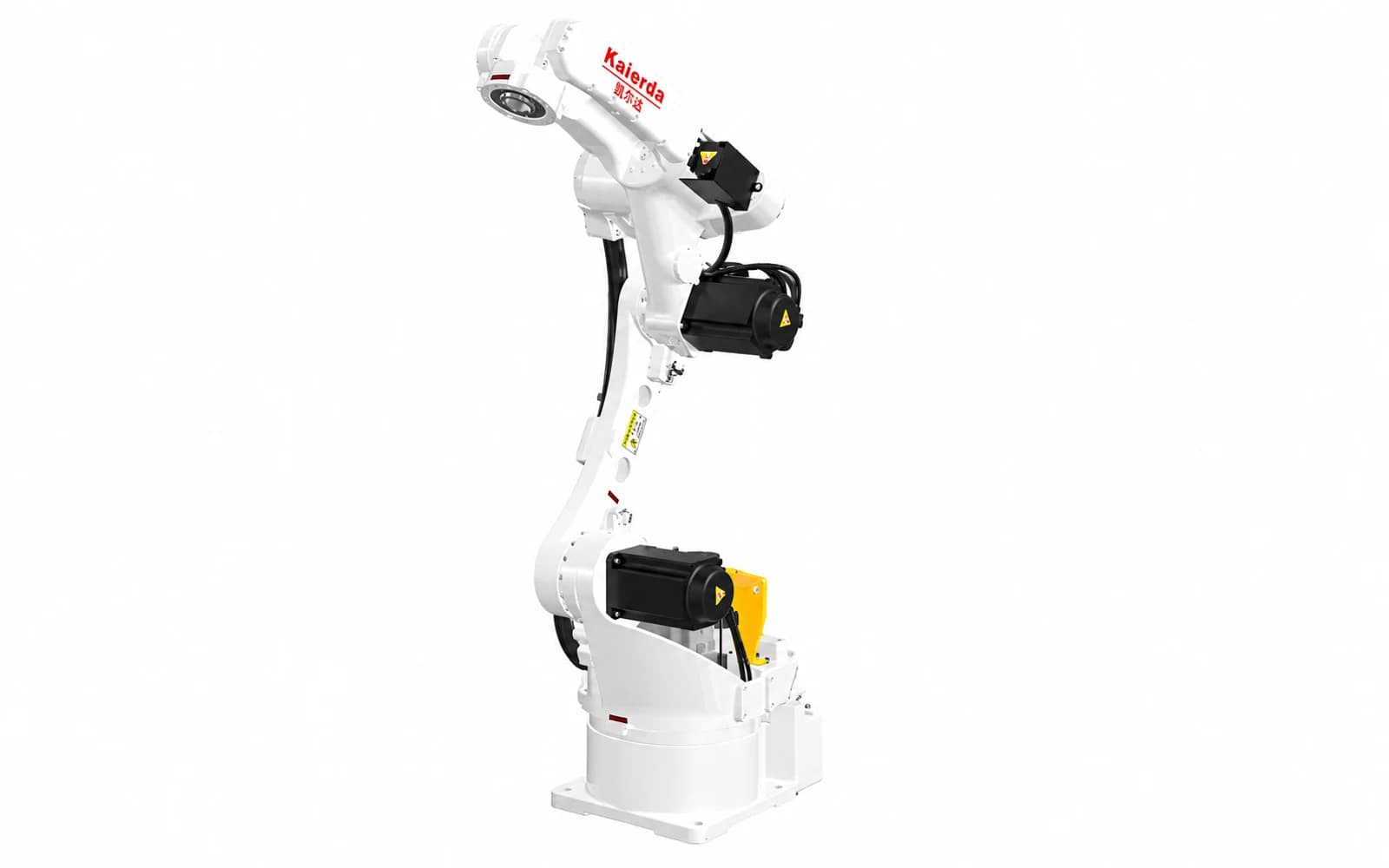

Articulated robotsKaierdaKaierda KP12Kaierda KP12 is a six-axis handling robot with a 12 kg payload and 1446 mm working radius. It is a candidate for part transfer and assembly when the complete gripper-and-part load fits the wrist limits.
- Payload
- 12 kg
- Working radius
- 1446 mm
- Axes
- 6

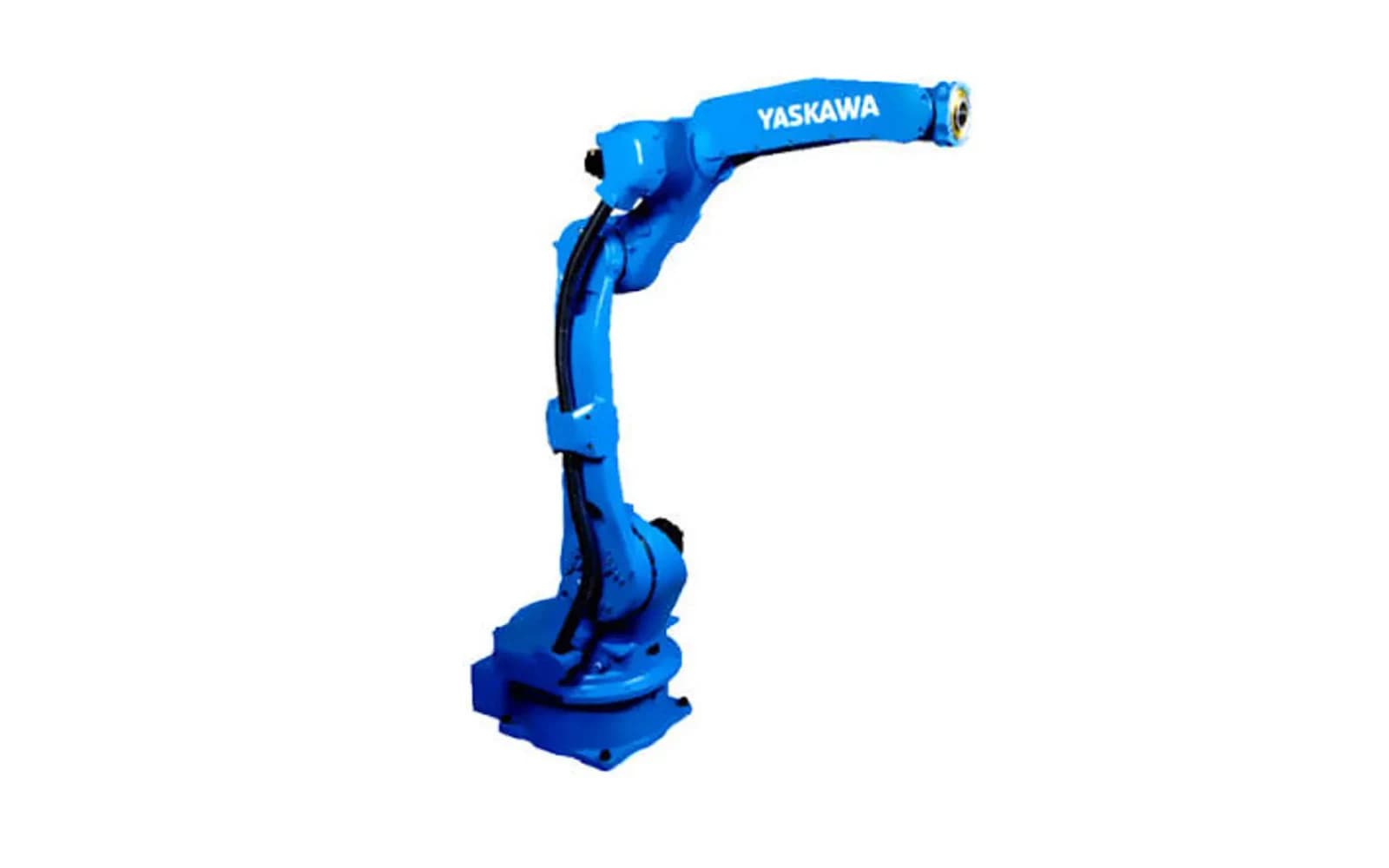

Articulated robotsYaskawaYaskawa MOTOMAN GP12Yaskawa MOTOMAN GP12 combines a 12 kg payload, 1440 mm reach and six controlled axes for handling, assembly and part transfer. The supplied controller options are YRC1000 and YRC1000micro; the proposal should identify which package is included.
- Payload
- 12 kg
- Maximum reach
- 1440 mm
- Controlled axes
- 6

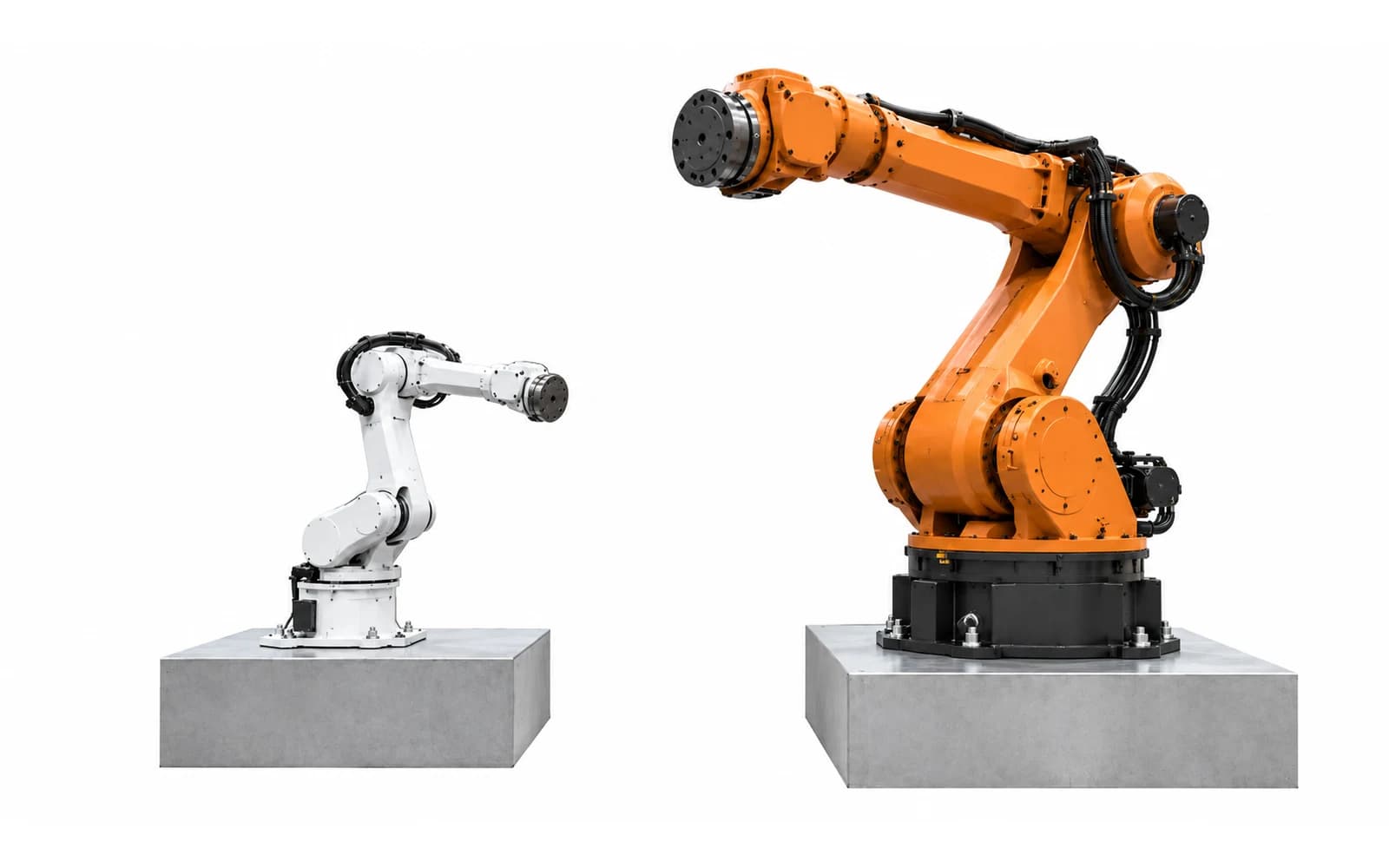

Articulated robotsSTEPSTEP SR Industrial RobotsSTEP SR industrial robots in this comparison cover twelve six-axis configurations for different handling loads and work envelopes. Compare payload, reach, robot mass and protection by model rather than treating the SR family as one fixed-capacity robot.
- Model options
- 12
- Compare by
- Payload, reach and controller

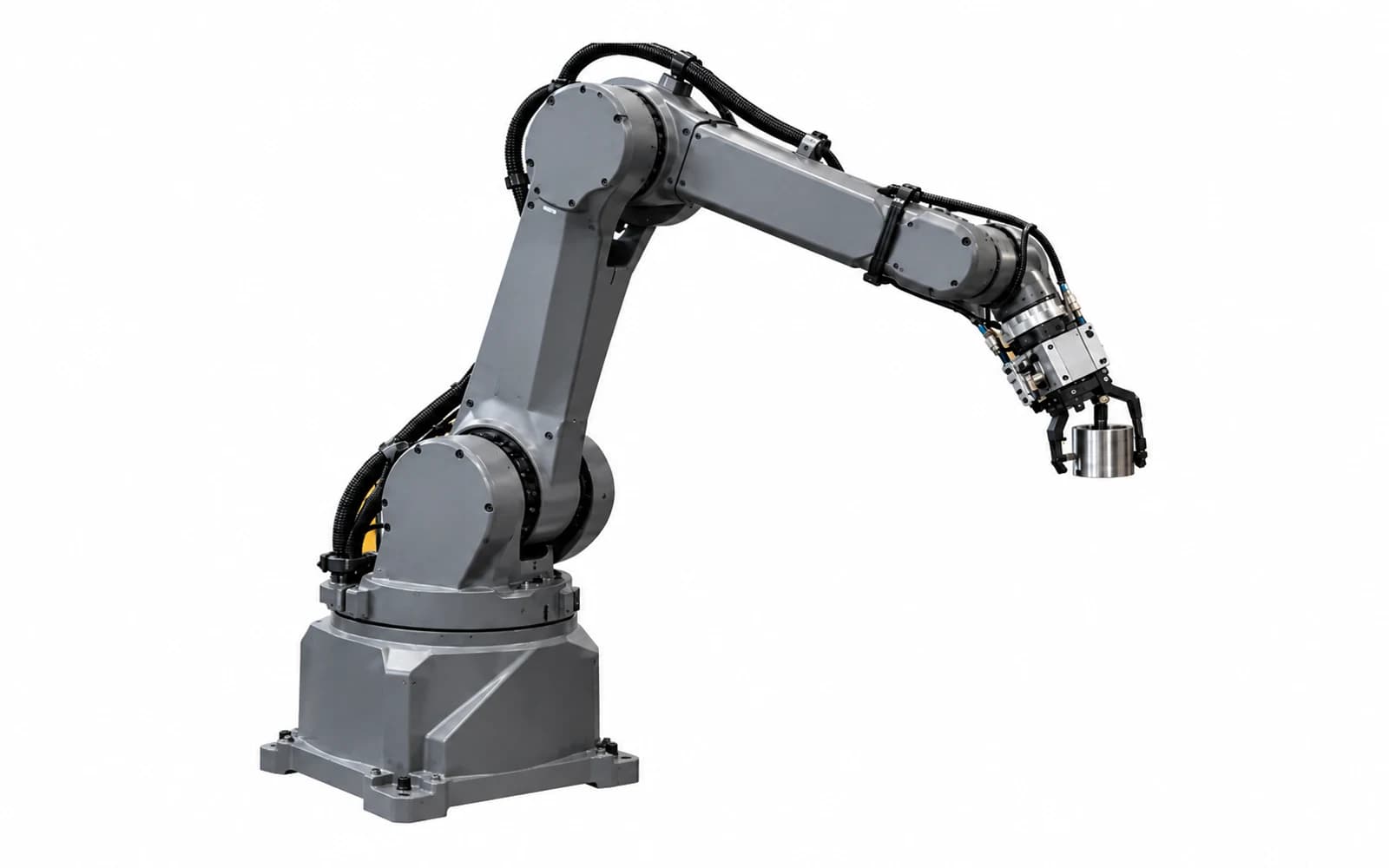

Articulated robotsFANUCFANUC Handling Robot SelectionCompare FANUC M-10, M-20 and R-2000 handling robot options by the exact model and production task. This family selection page links to the dedicated M-20iD/25 specifications and keeps other variants separate until their current configuration is identified.
- Model options
- 10
- Compare by
- Payload, reach and controller
