PRODUCT CATALOG
Welding robots
Explore arc-welding robots from FANUC, Yaskawa, ABB, Kaierda and KUKA. Compare model specifications, torch load and joint access, then define the controller, welding source, feeder and fixture package for your application.
7product & series pages12equipment categories3website languages
7 products in this view
Welding robots
Explore arc-welding robots from FANUC, Yaskawa, ABB, Kaierda and KUKA. Compare model specifications, torch load and joint access, then define the controller, welding source, feeder and fixture package for your application.

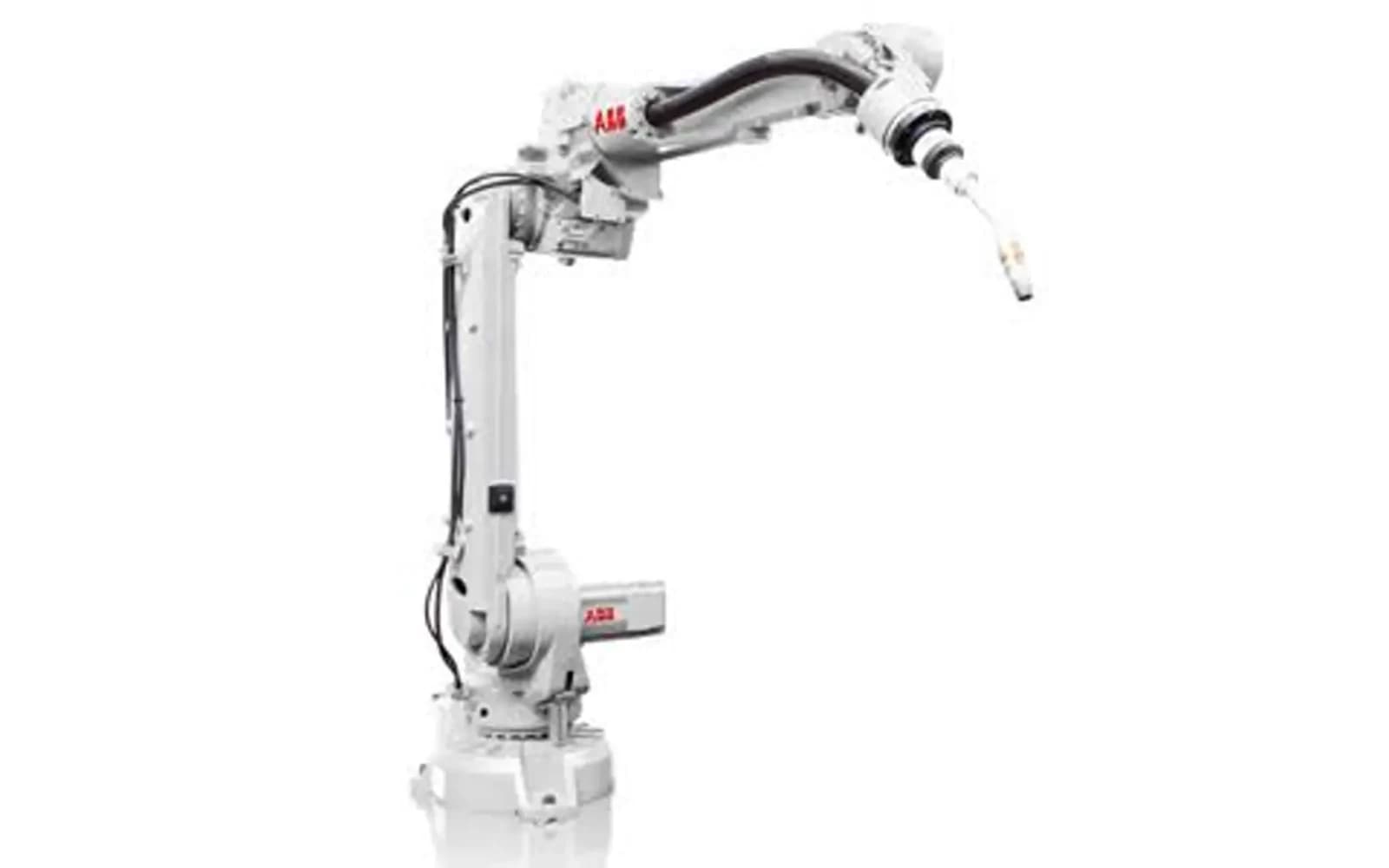

Welding robotsABBABB IRB 1410ABB IRB 1410 is a six-axis robot with a 5 kg wrist handling capacity and 1.44 m reach. For an arc-welding package, allocate the wrist load to the torch assembly and dress package before checking access to each joint.
- Handling capacity
- 5 kg at wrist
- Reach
- 1.44 m
- Axes
- 6

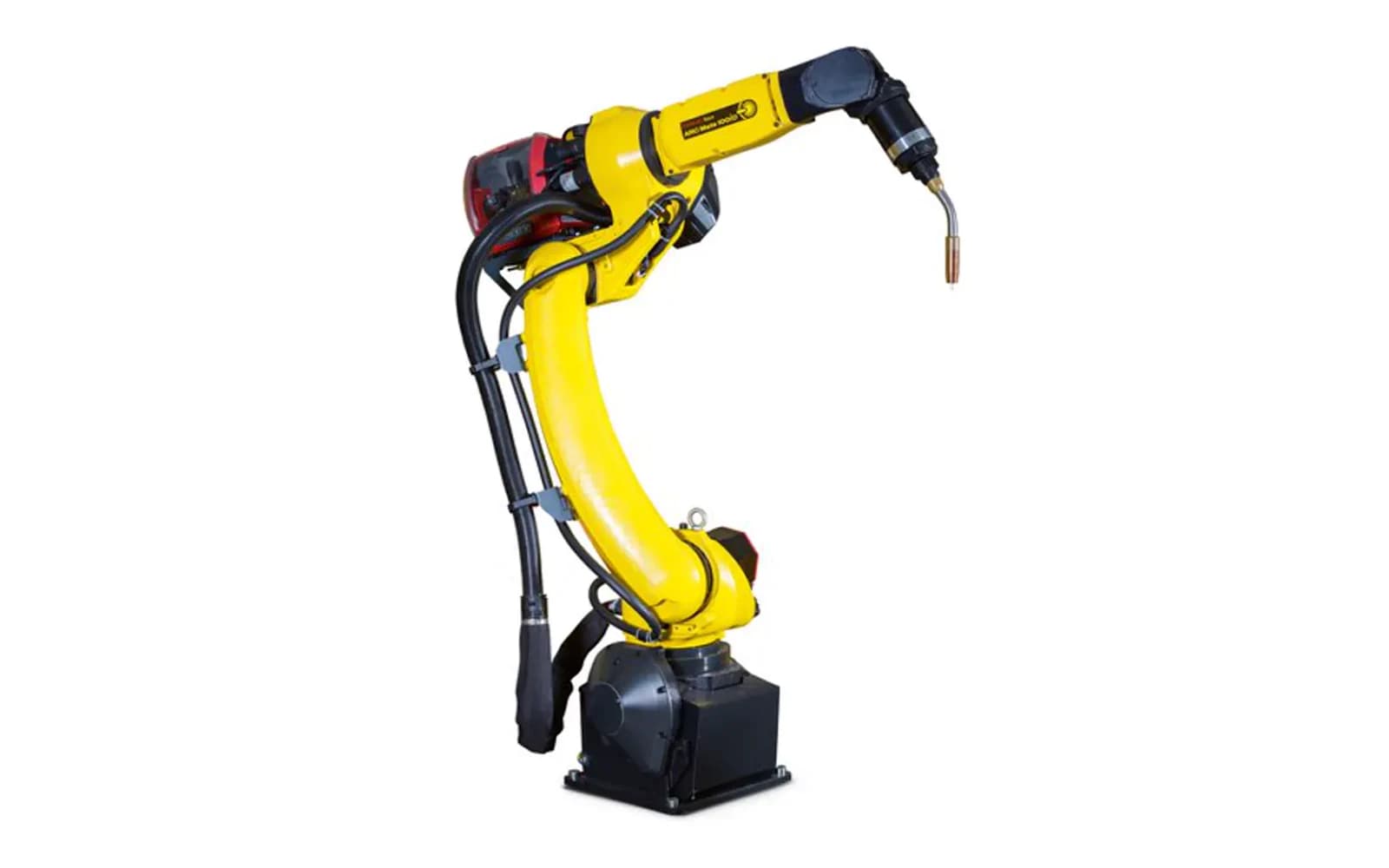

Welding robotsFANUCFANUC ARC Mate 100iDFANUC ARC Mate 100iD is a six-axis arc-welding robot with a 12 kg payload and 1441 mm reach. The supplied configuration identifies an R-30iB Plus controller, making the controller and welding-package specification central to an equipment quotation.
- Maximum payload
- 12 kg
- Maximum reach
- 1441 mm
- Controlled axes
- 6

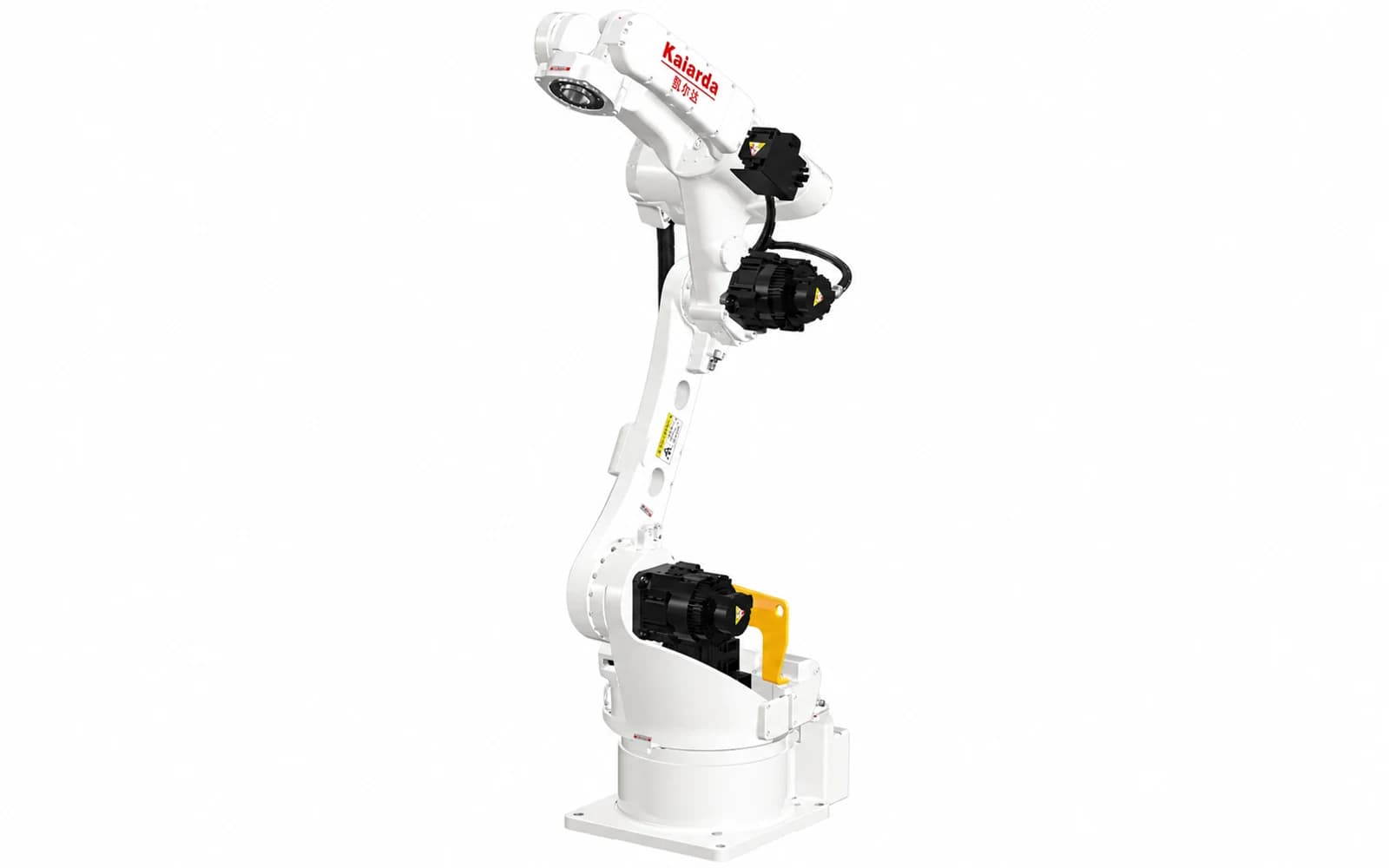

Welding robotsKaierdaKaierda KR1440Kaierda KR1440 is a six-axis welding robot with a 6 kg payload and 1446 mm working radius. It provides a shorter-reach alternative to the KR2010 when joint positions can be covered without the longer arm envelope.
- Payload
- 6 kg
- Working radius
- 1446 mm
- Axes
- 6

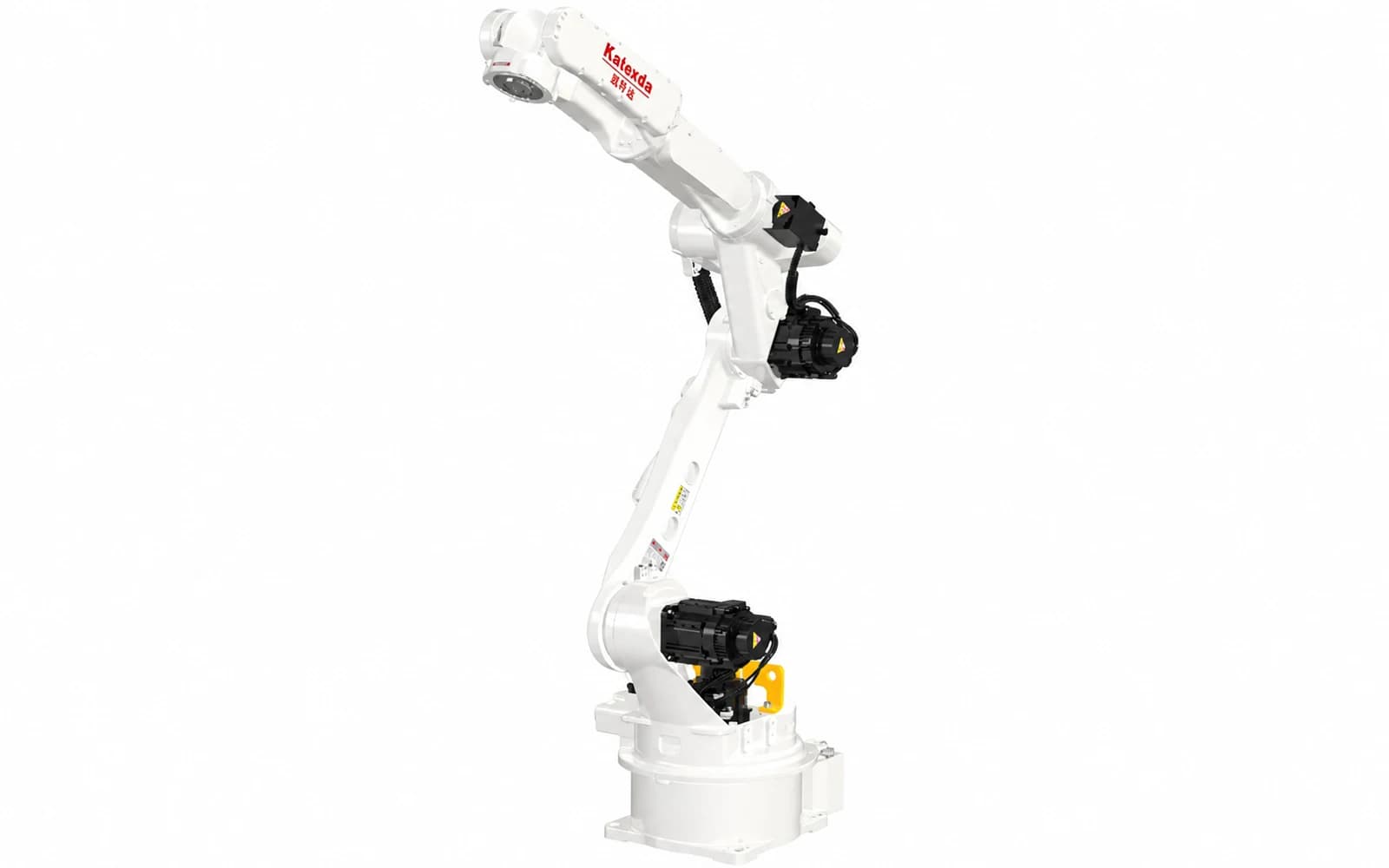

Welding robotsKaierdaKaierda KR2010Kaierda KR2010 is a six-axis welding robot with a 2010 mm working radius and 6 kg payload. Its longer reach is relevant to wider fixtures and more distant joints, while the tool load remains a separate selection constraint.
- Payload
- 6 kg
- Working radius
- 2010 mm
- Axes
- 6

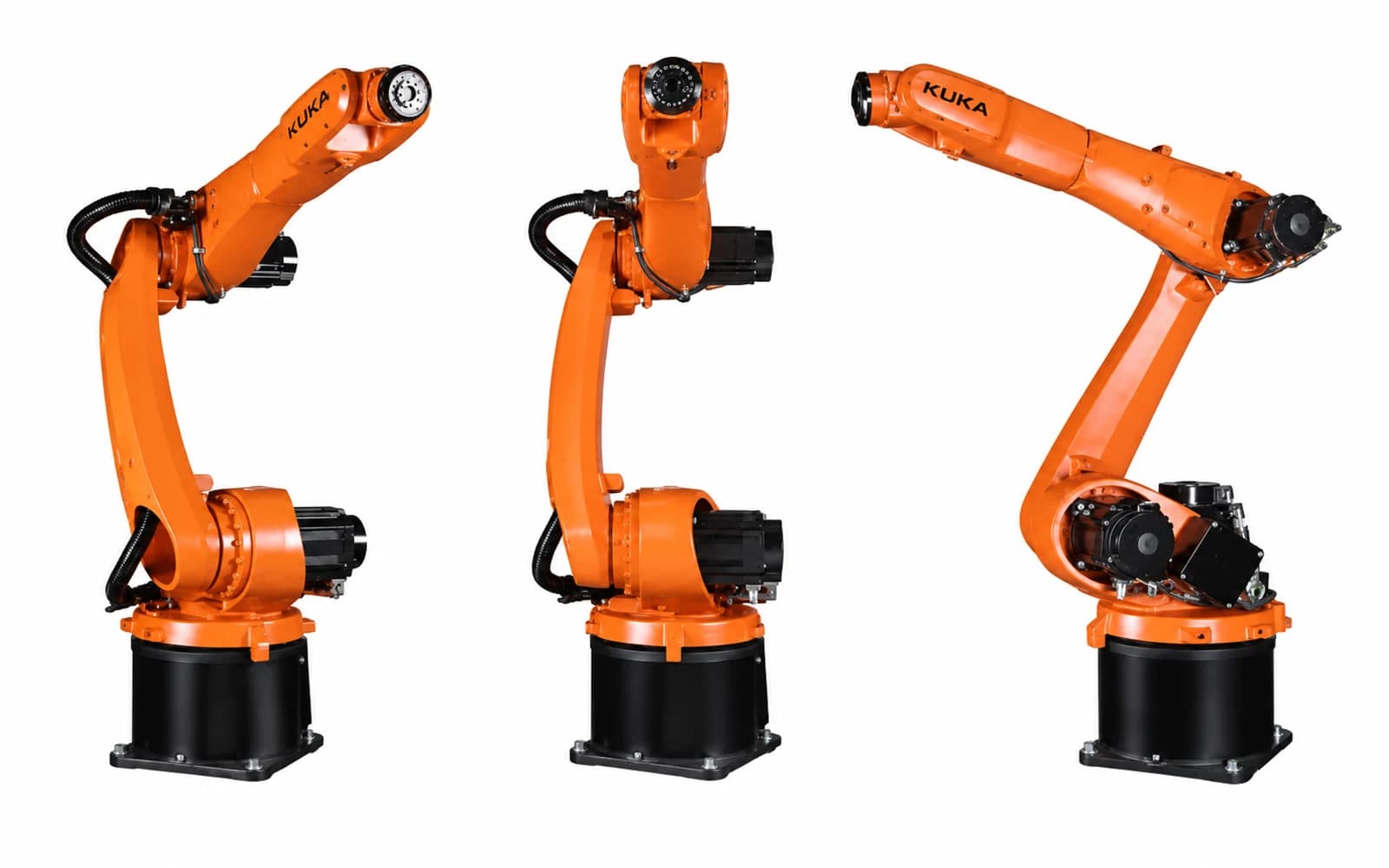

Welding robotsKUKAKUKA KR CYBERTECH nano ARCKUKA KR CYBERTECH nano ARC is an arc-welding robot family, not a single fixed specification. The supplied family spans 6–10 kg payloads and 1440–1840 mm reaches, with KR C5 controller options and several mounting orientations.
- Payload range
- 6-10 kg
- Reach range
- 1440-1840 mm
- Repeatability
- 0.04 mm
Welding robotsYaskawaYaskawa MOTOMAN AR1440Yaskawa MOTOMAN AR1440 is a six-axis arc-welding robot with a 12 kg payload, 1440 mm working range and YRC1000 controller. It is the shorter-reach AR option in this catalog for comparing torch access around a defined fixture.
- Maximum payload
- 12 kg
- Maximum working range
- 1440 mm
- Controlled axes
- 6

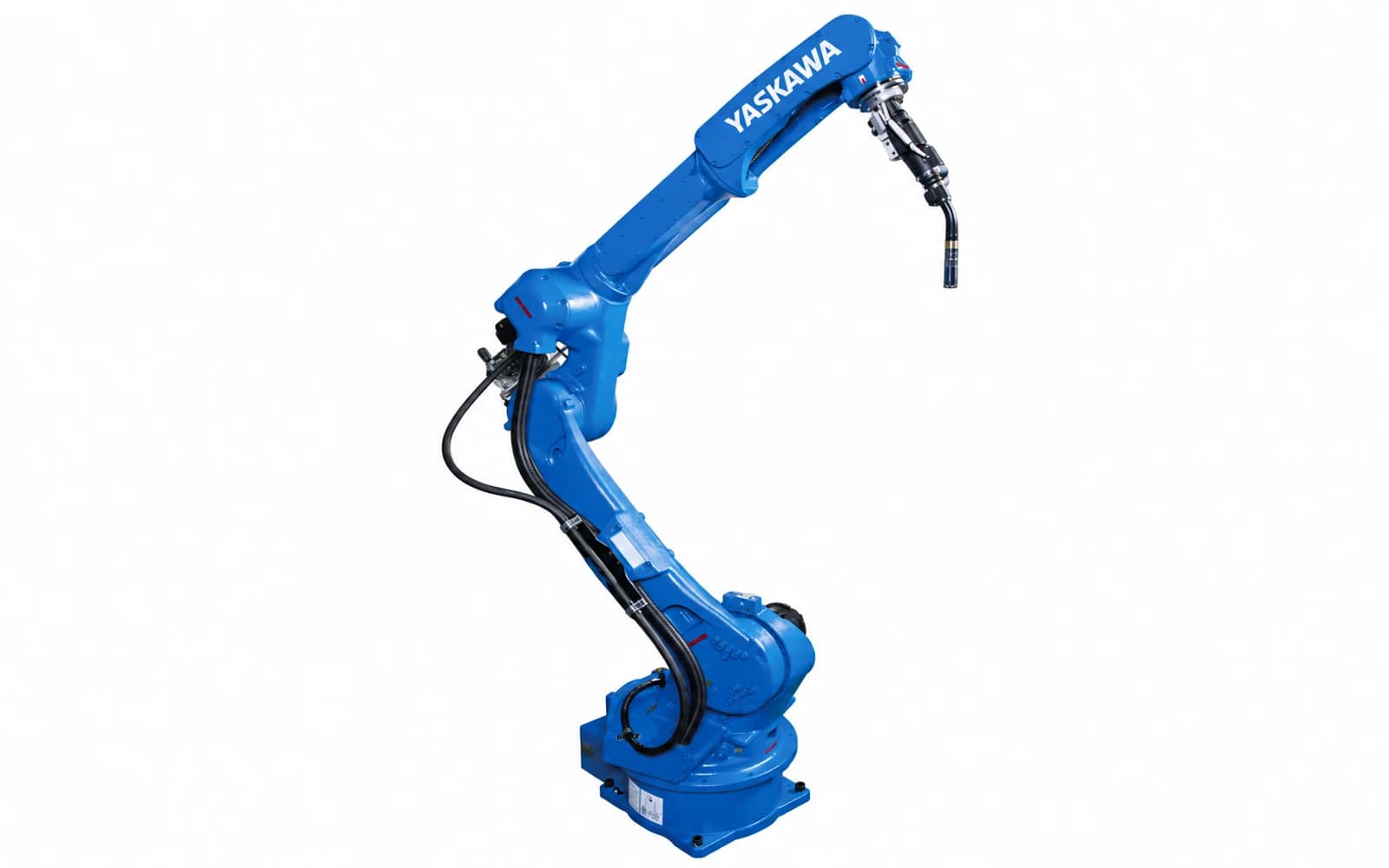

Welding robotsYaskawaYaskawa MOTOMAN AR2010Yaskawa MOTOMAN AR2010 is a six-axis arc-welding robot with a 2010 mm working range and YRC1000 controller. Its supplied load entry separates the 12 kg maximum payload from a 9 kg U-axis rating; those values describe different mounting positions.
- Maximum payload
- 12 kg (9 kg on U-axis)
- Maximum working range
- 2010 mm
- Controlled axes
- 6
