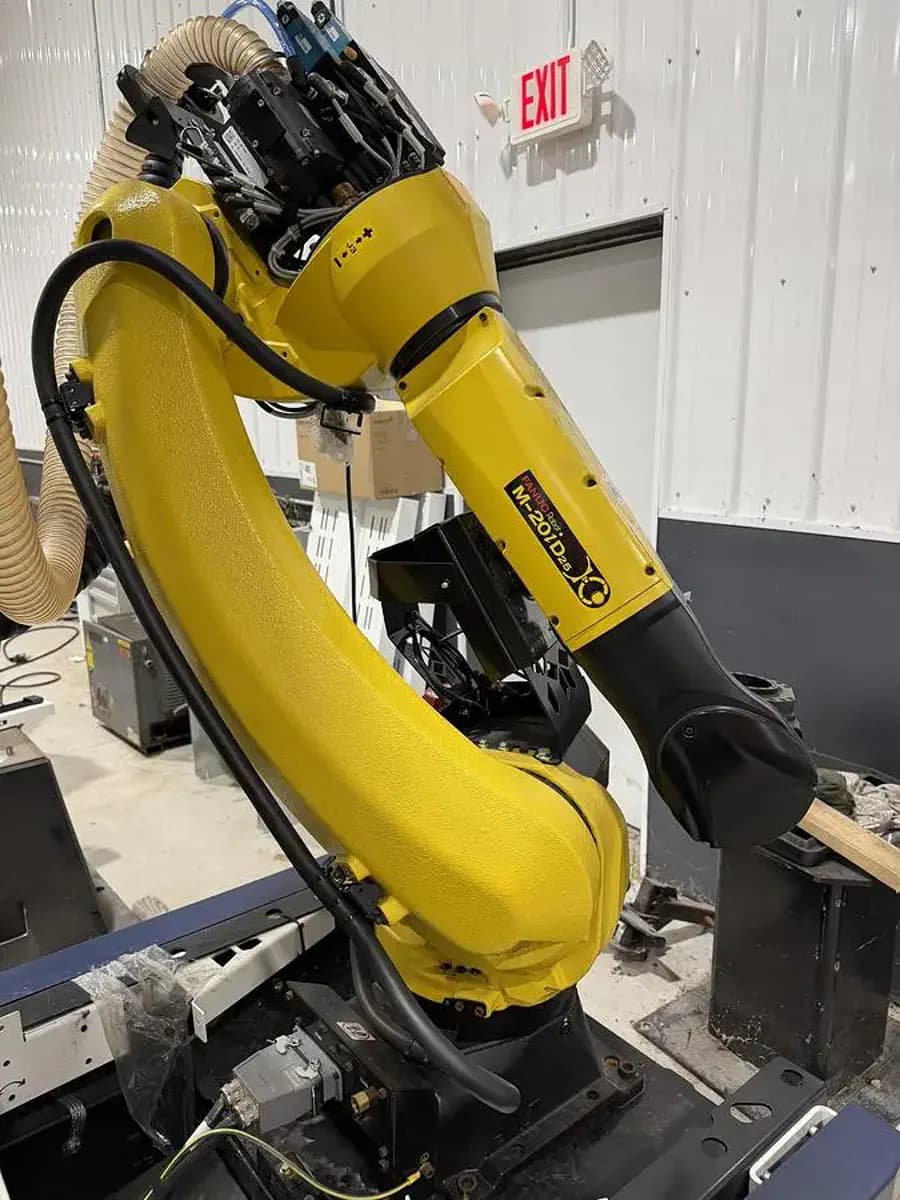

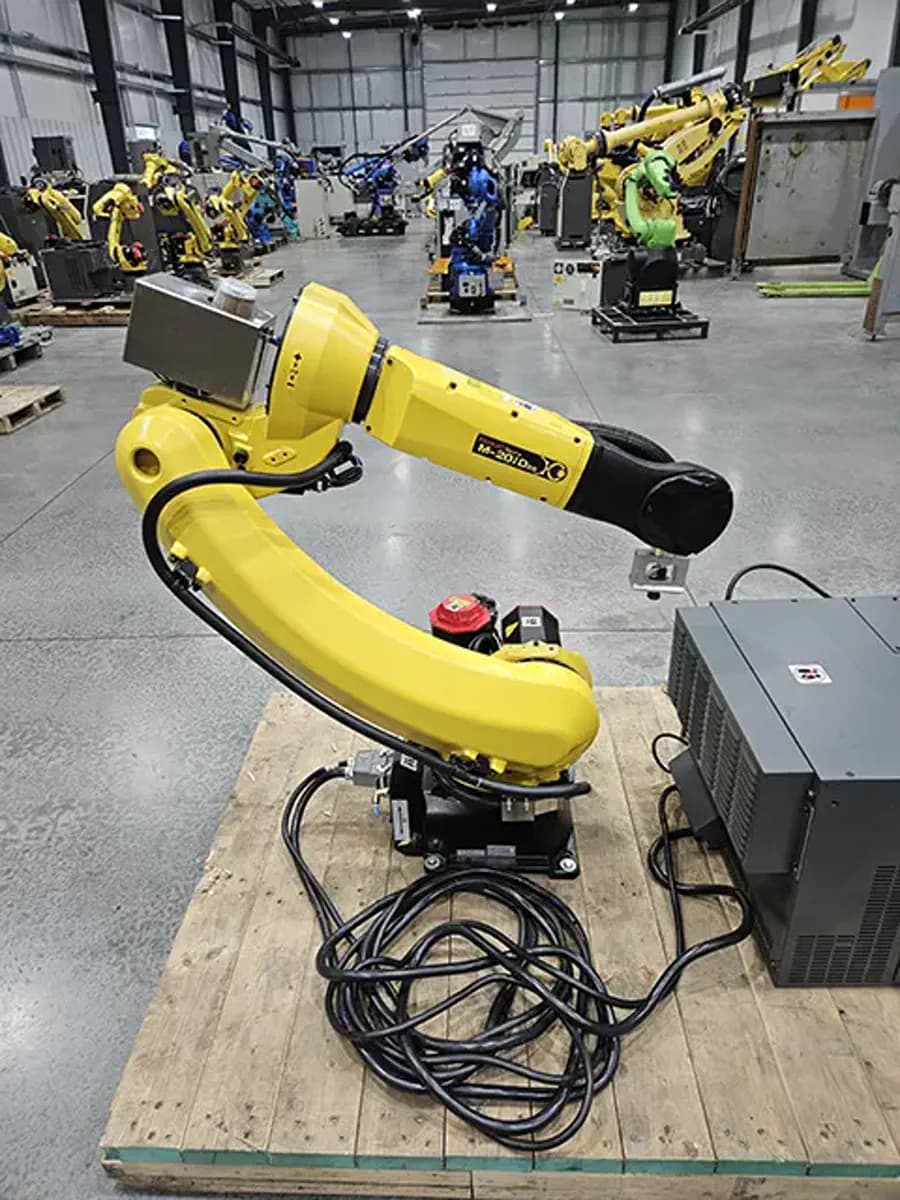

FANUC M-20iD/25 is a six-axis industrial robot with a 25 kg payload and 1831 mm reach for machine loading, parts handling and assembly. Its load capacity must accommodate the gripper and adapters as well as the part.
- Maximum payload
- 25 kg
- Maximum reach
- 1831 mm
- Controlled axes
- 6
Handling, tooling and working envelope
The supplied sheet lists ±0.02 mm repeatability and a 250 kg mechanical weight. Use the repeatability figure to discuss repeat motions, not as an absolute part-positioning guarantee. Check the actual machine opening, fixture depth and wrist orientation with the selected tool.
A handling robot moves the complete tool-and-part assembly between defined poses. Start with the gripper, adapters, services and workpiece, then check wrist moments and inertia for the chosen motion. A reach dimension describes the robot geometry; usable access also depends on tool length, wrist orientation, machine openings and fixtures. For assembly, define how the part is located and how insertion or seating is confirmed. For machine tending, include door travel, chuck or fixture status, chips, coolant and the recovery position. These details distinguish an arm-only purchase from a working transfer system.
Application focus
- Material handling
- Machine tending
- Assembly
Specifications and selection notes
Maximum payload
Include the complete moving assembly. Check center of gravity and inertia as well as mass; a nominal load is not a rating for every offset or motion.
Maximum reach
Check the required tool position and orientation with the fixture and clamps in place. The geometric limit alone does not establish usable access.
Controlled axes
Check the required motion with the loaded assembly, limits and services. Specify indexing or coordinated movement and the selected drive arrangement.
Repeatability
Keep the stated measurement and conditions. Repeatability, absolute accuracy and finished-part quality are different characteristics.
Define what you need supplied
Robot package
Specify arm, controller, pendant, software and cables by exact version.
Tooling package
Add the gripper, adapters, sensors and part presentation required by the task.
Integrated transfer
Define machine interfaces, protection, programming and on-site commissioning separately.
Match the equipment to your installation
Plan the pedestal, anchoring and cable route around the robot mass and moving envelope. Match the offered controller, fieldbus, safety connections and electrical supply to the site. Keep access for mastering, grease points, connectors and tool replacement. During commissioning, check loaded paths, part-present signals, loss of grip, controlled stops and restart with the intended part family.
| Selection factor | Information to specify |
|---|---|
| Moving load | Part, gripper, adapters and services; include center of gravity and inertia at the wrist. |
| Pick and place positions | Coordinates, tool orientation, insertion depth and clearance at every handoff. |
| Grip and part detection | Contact surfaces, part variation, confirmation signals and the response to a missed pick. |
| Machine interface | Controller version, door/fixture sequence, I/O and a defined recovery state. |
From the part to the equipment package
- 01Define the part and pickup
- 02Size the complete tool load
- 03Check every transfer pose
- 04Connect controls and protection
- 05Test handling and recovery
Tooling, interfaces and service access
Product and ordering questions
01What are the applications of FANUC M-20iD/25?+
FANUC M-20iD/25 is a six-axis industrial robot with a 25 kg payload and 1831 mm reach for machine loading, parts handling and assembly. Its load capacity must accommodate the gripper and adapters as well as the part.
02Does robot payload equal the allowed part weight?+
No. The moving load includes the gripper, adapters, hoses and part. Its center of gravity, wrist moments and inertia must also fit the selected robot and motion. A part below the nominal payload can still require a different tool or robot because of its dimensions and offset.
03What should I consider when choosing FANUC M-20iD/25?+
The supplied sheet lists ±0.02 mm repeatability and a 250 kg mechanical weight. Use the repeatability figure to discuss repeat motions, not as an absolute part-positioning guarantee. Check the actual machine opening, fixture depth and wrist orientation with the selected tool.
04What should the equipment package include?+
Identify the selected equipment and separate the following packages: robot package, tooling package, integrated transfer. State which accessories, controls, installation, programming and commissioning are included. This makes equipment-only and integrated proposals comparable without assuming identical supply scope.
05How can I request a quotation for FANUC M-20iD/25?+
Send the required model or arrangement, quantity and destination, plus part, gripper, adapters and services; include center of gravity and inertia at the wrist; coordinates, tool orientation, insertion depth and clearance at every handoff. Add photographs or drawings and identify existing equipment. TubeFrame can then discuss model sourcing, configuration and partner-supported integration as separately defined work packages.
Specify your next equipment package
Send the model or configuration, drawings, quantity and destination. We will discuss equipment sourcing, technical interfaces and any integration work required for your application.
